Jio Set-Top Box (IPSTB JMSC200A2_J) Teardown

System Architecture & Overview

The Jio Set-Top Box (Model: IPSTB JMSC200A2_J), provided with Jio AirFiber subscriptions, represents a modern, high-performance media delivery environment. Designed for flawless 4K UHD streaming, it leverages top-tier silicone architectures suited for decoding emerging video formats flawlessly while navigating intense networking requirements.

At the center of the IPSTB JMSC200A2_J rests the highly reliable Amlogic S905X4 Application Processor. This 64-bit quad-core ARM Cortex-A55 engine utilizes a Mali-G31 MP2 GPU, granting it supreme native support for advanced codecs including AV1, VP9, and H.265 at up to 4K 60fps outputs. Coupled strategically with SCY Memory variants (LPDDR4) and high-density YMTC Xtacking eMMC 5.1 storage, it mitigates bottlenecking—ensuring a fluid user interface, zero-stutter playback, and ultra-fast application load times.

Detailed Component Specifications

Chip Model	Component Type	Manufacturer	Core Specifications & Capacity	Package Details	Visible Markings
Main SoC	Application Processor (SoC)	Amlogic	• Quad-core ARM Cortex-A55 (up to 2.0 GHz, 12nm process) • GPU: Mali-G31 MP2 (OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0) • Memory: 32-bit DDR3/3L/4, LPDDR3/4 (up to 4 GB typical) • Storage I/F: eMMC 5.0, NAND Flash • Video: 4K@60/75 decoding (H.265/HEVC, VP9, AV1), HDMI 2.1 • Other: Gigabit Ethernet, USB 3.0, NPU optional	BGA package (square, metallic top) Standard application: Premium 4K TV boxes	@mlogic S905X4 MA1356-0604 (faint: -NU23)
eMMC Storage	eMMC 5.1 NAND Flash Module	SCY (Shenzhen Shichuangyi Electronics)	• 32 GB (256 Gb TLC x 1 Die) • Interface: eMMC 5.1 (JEDEC Compliant) • Architecture: YMTC Xtacking (high-density 3D stacking) • Voltage: 1.8V / 3.3V Support	FBGA 153, 11.5 × 13 mm package High-speed embedded module, common in Rockchip eMMC mass production	SCY E32GCYNB1ABE00 2525 AO 060665 YMTC Xtacking
Memory Chip (Variant 1)	Memory Module (LPDDR4 DRAM)	SCY (Shenzhen Shichuangyi Electronics)	• Low-Power Double Data Rate 4 (LPDDR4) • High-speed data throughput caching module • Engineered alongside system SoC logic	Black square BGA package Size parallel to the eMMC chip	SCY SD40D86G-FC 2528C 070526 CABCX24K11C86F
Memory Chip (Variant 2) (Qty: 2)	Memory Module (LPDDR4 DRAM)	SCY (Shenzhen Shichuangyi Electronics)	• Formulates dual-channel RAM operations • Combined memory pool typically scales up to 4GB in S905X4 boards for robust 4K streaming	Black square BGA package FG variant of the FC chip (Possible package or latency revision)	SCY SD40D86G-FG 2528C 070526 CABCX24K11C86F

High-Resolution Internal Tour

Direct sequential PCB captures mapping the internal architecture of the IPSTB JMSC200A2_J without interruption.

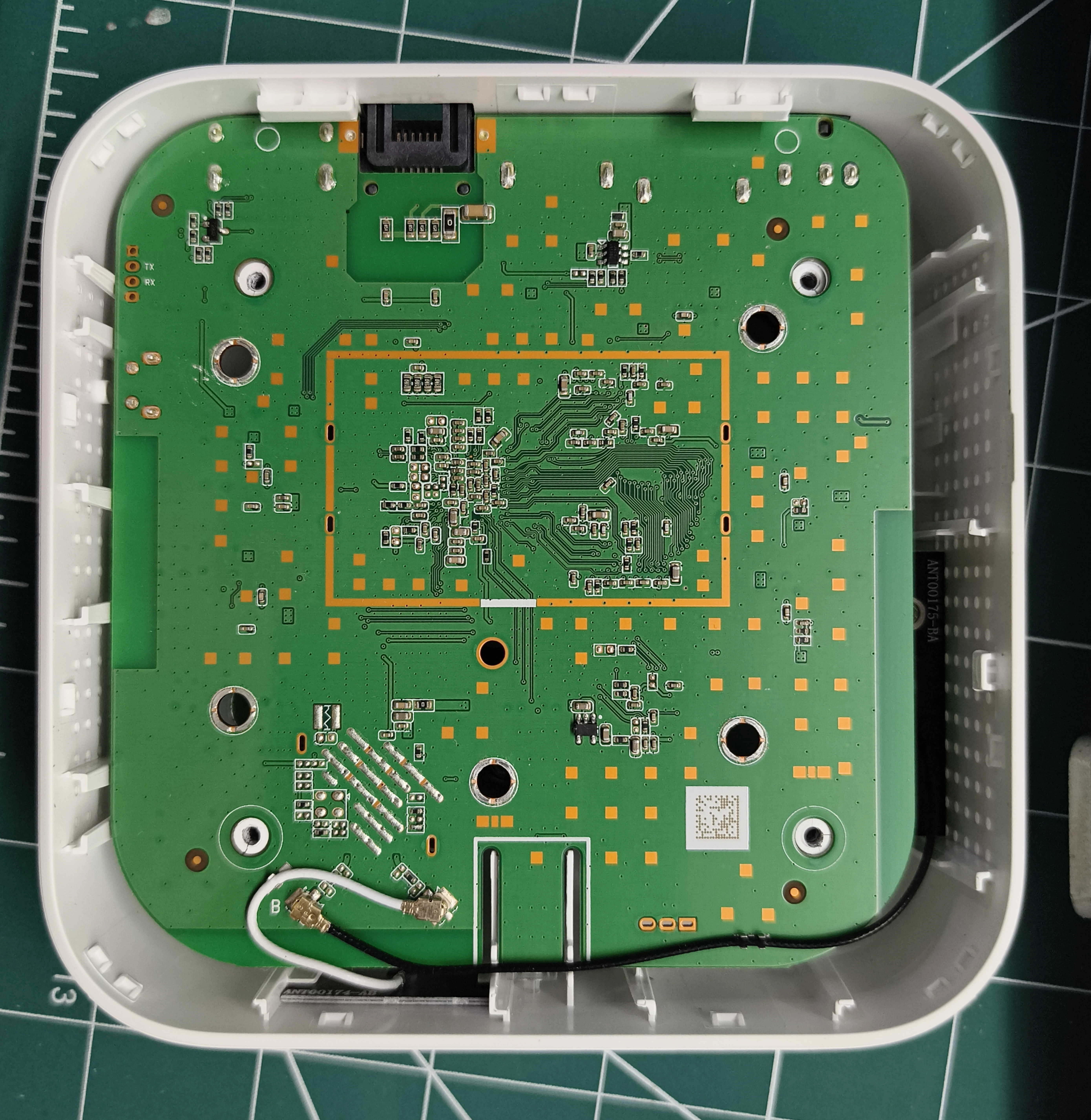

Amlogic S905X4 Main SoC Chip Close-Up - Jio AirFiber STB IPSTB JMSC200A2_J Teardown

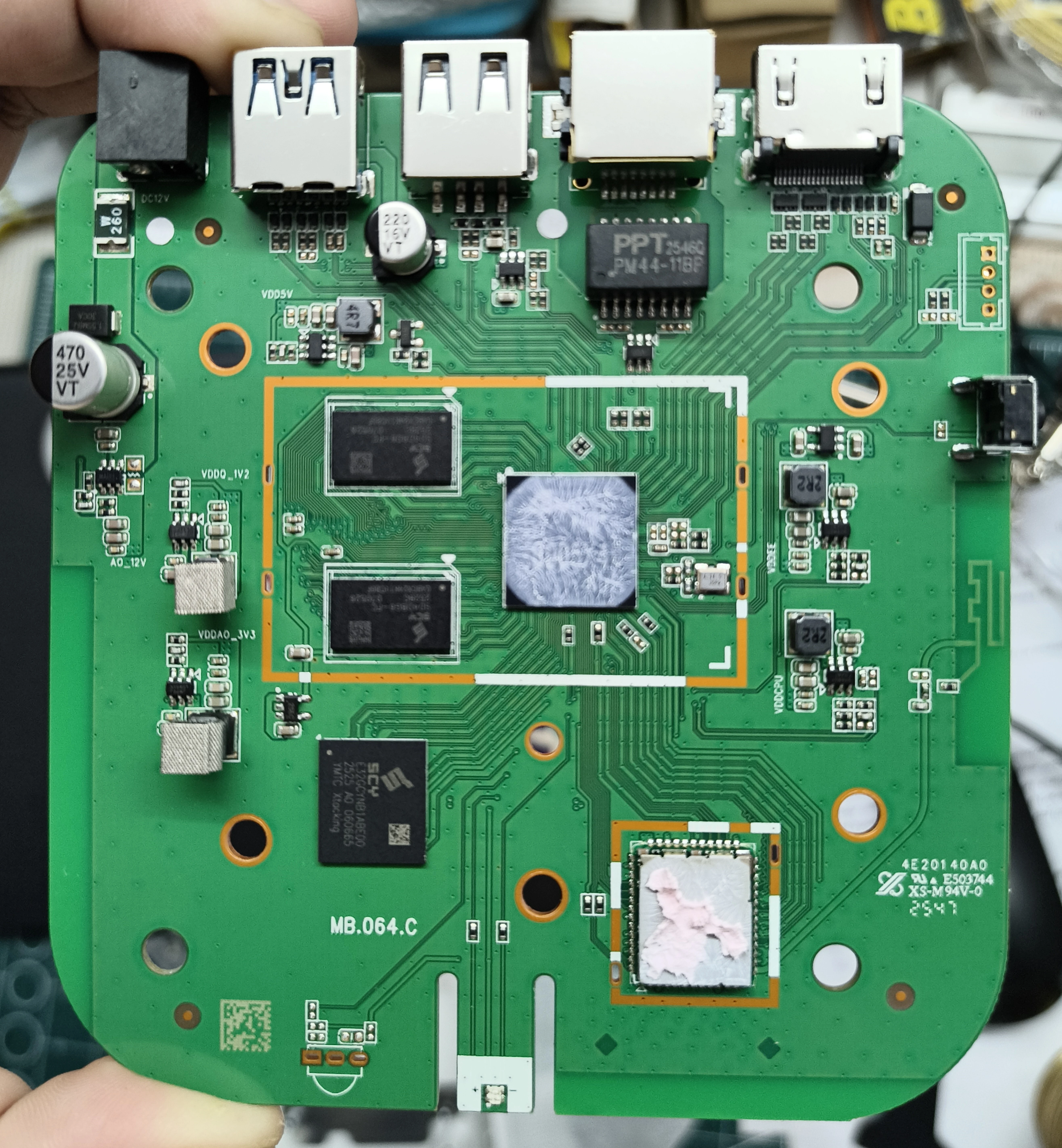

SCY YMTC Xtacking eMMC 32GB Storage & LPDDR4 Memory Chip - Jio AirFiber STB Disassembly

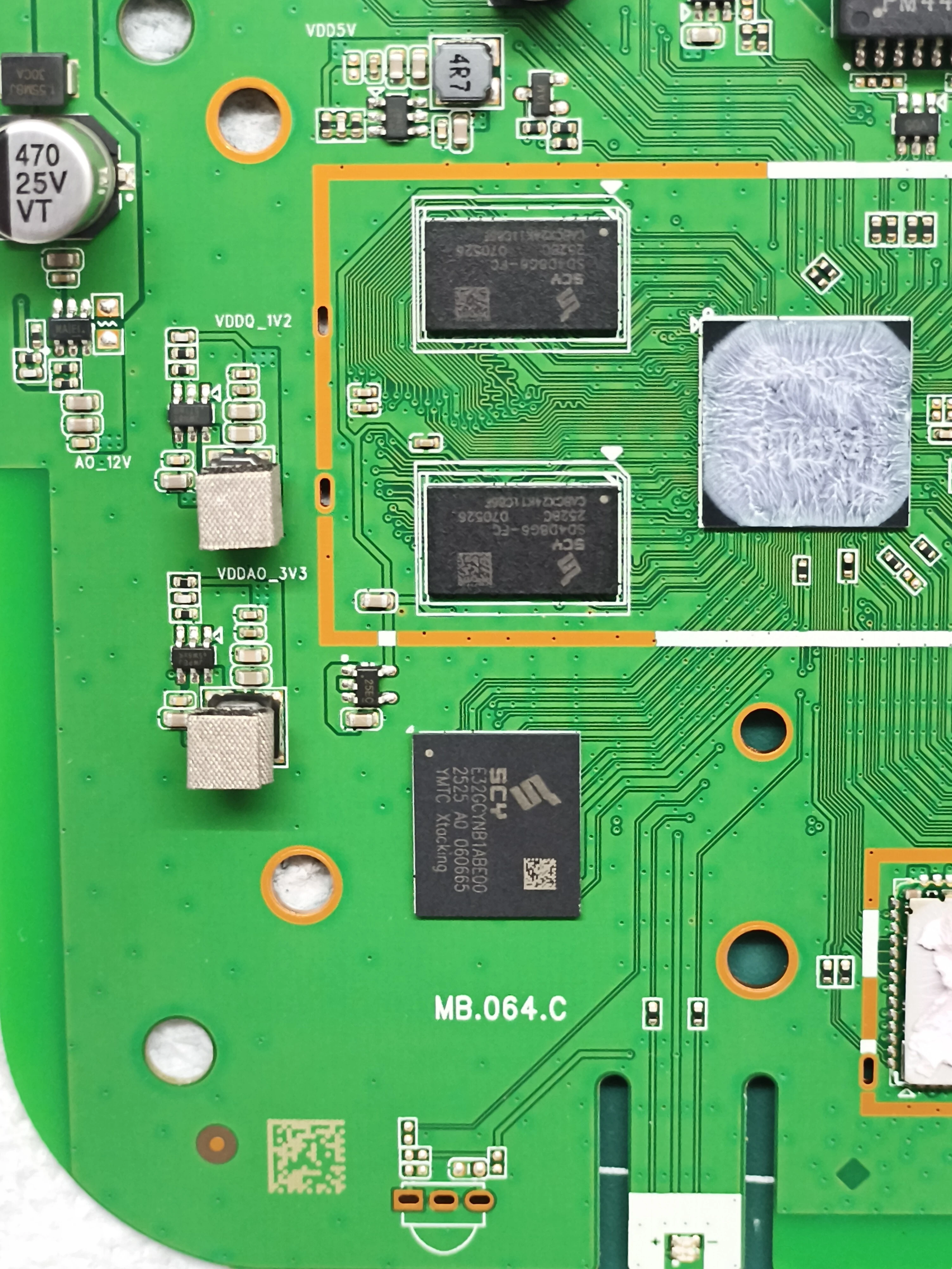

SCY Dual-Channel LPDDR4 Memory Chip SD40D86G-FG Focus - Jio STB IPSTB JMSC200A2_J PCB

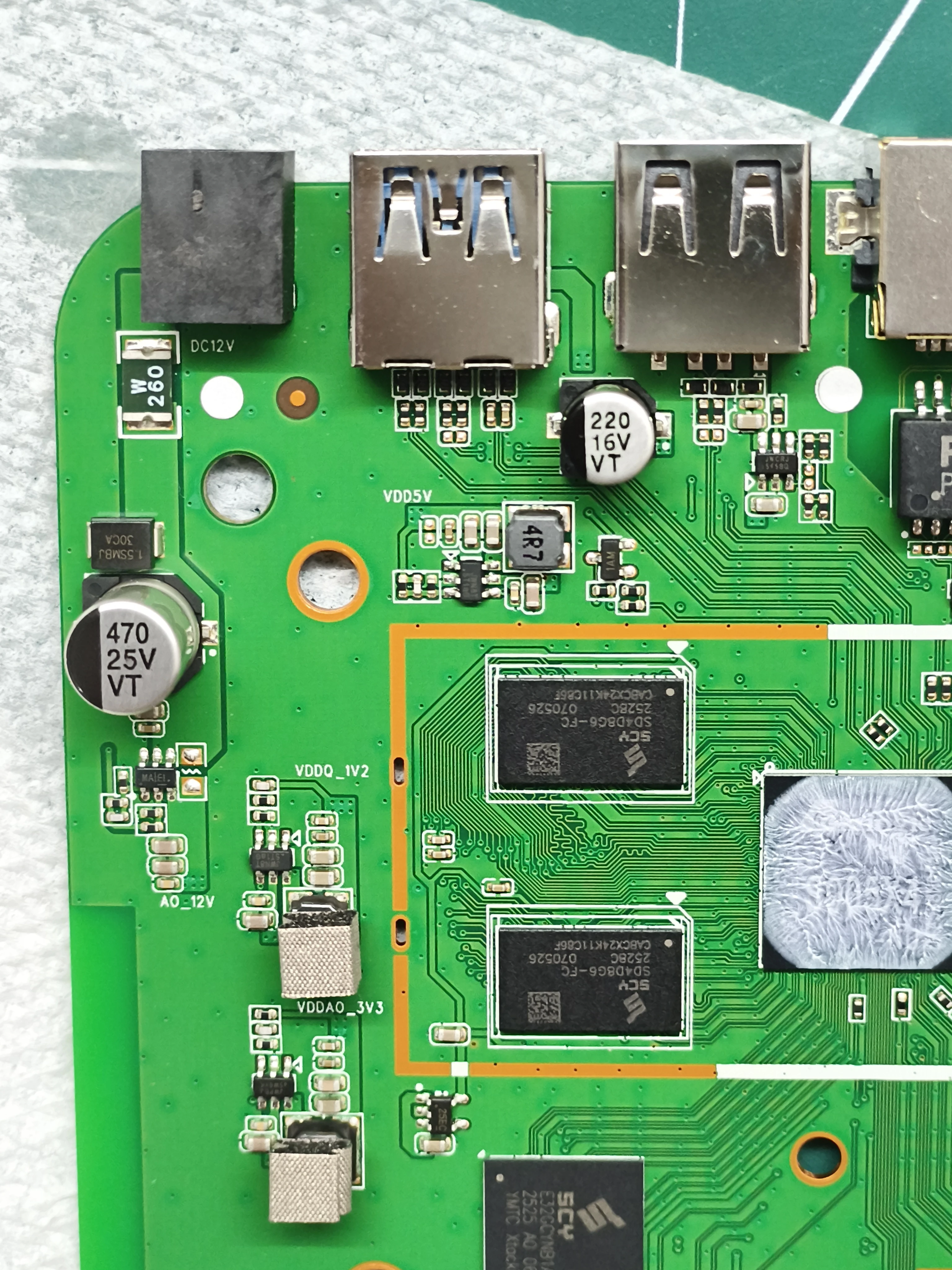

Jio AirFiber STB High-Resolution Internal PCB Architecture - Model IPSTB JMSC200A2_J Teardown

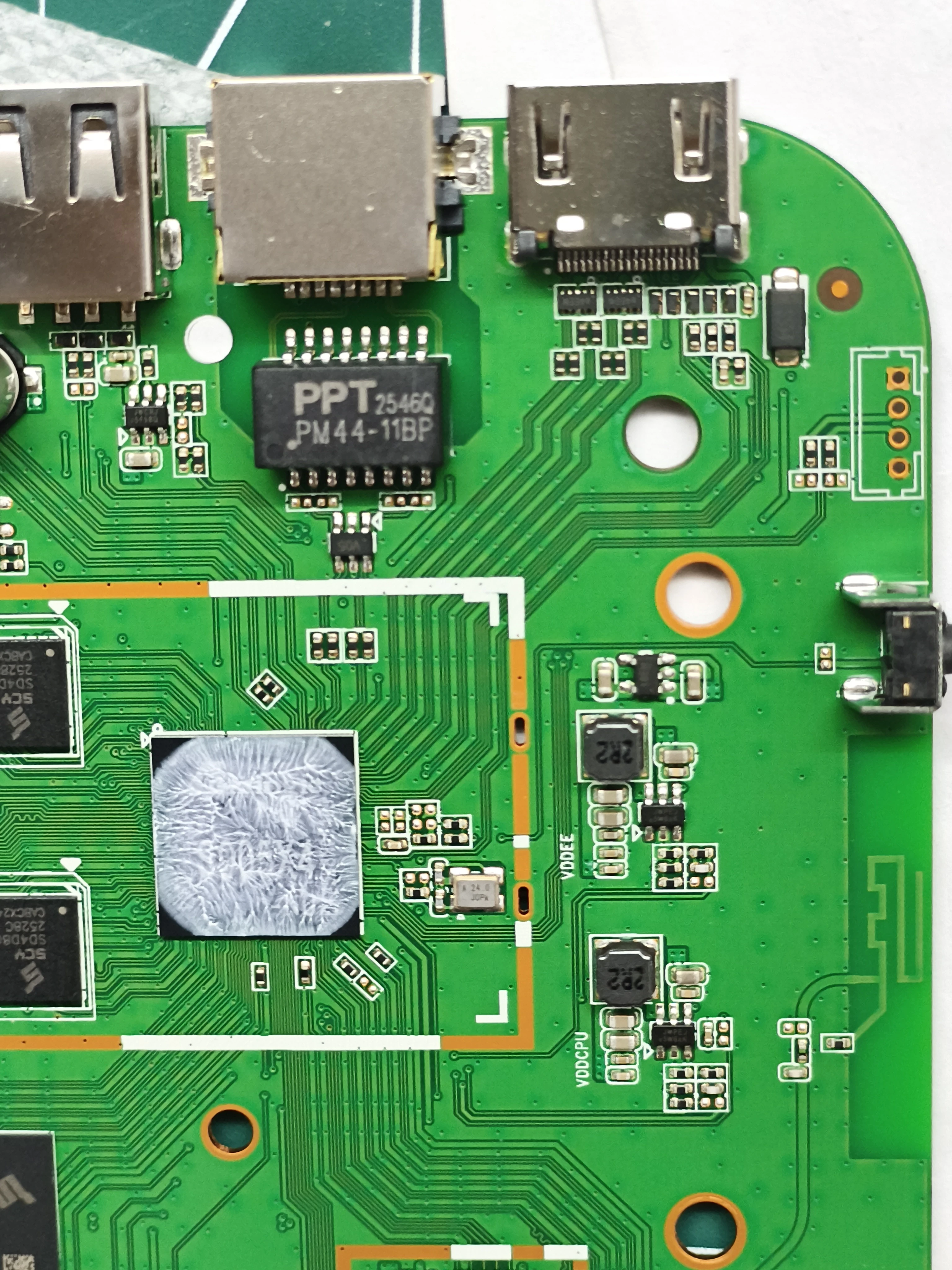

Jio AirFiber STB Internal Hardware Components & Circuit Layout

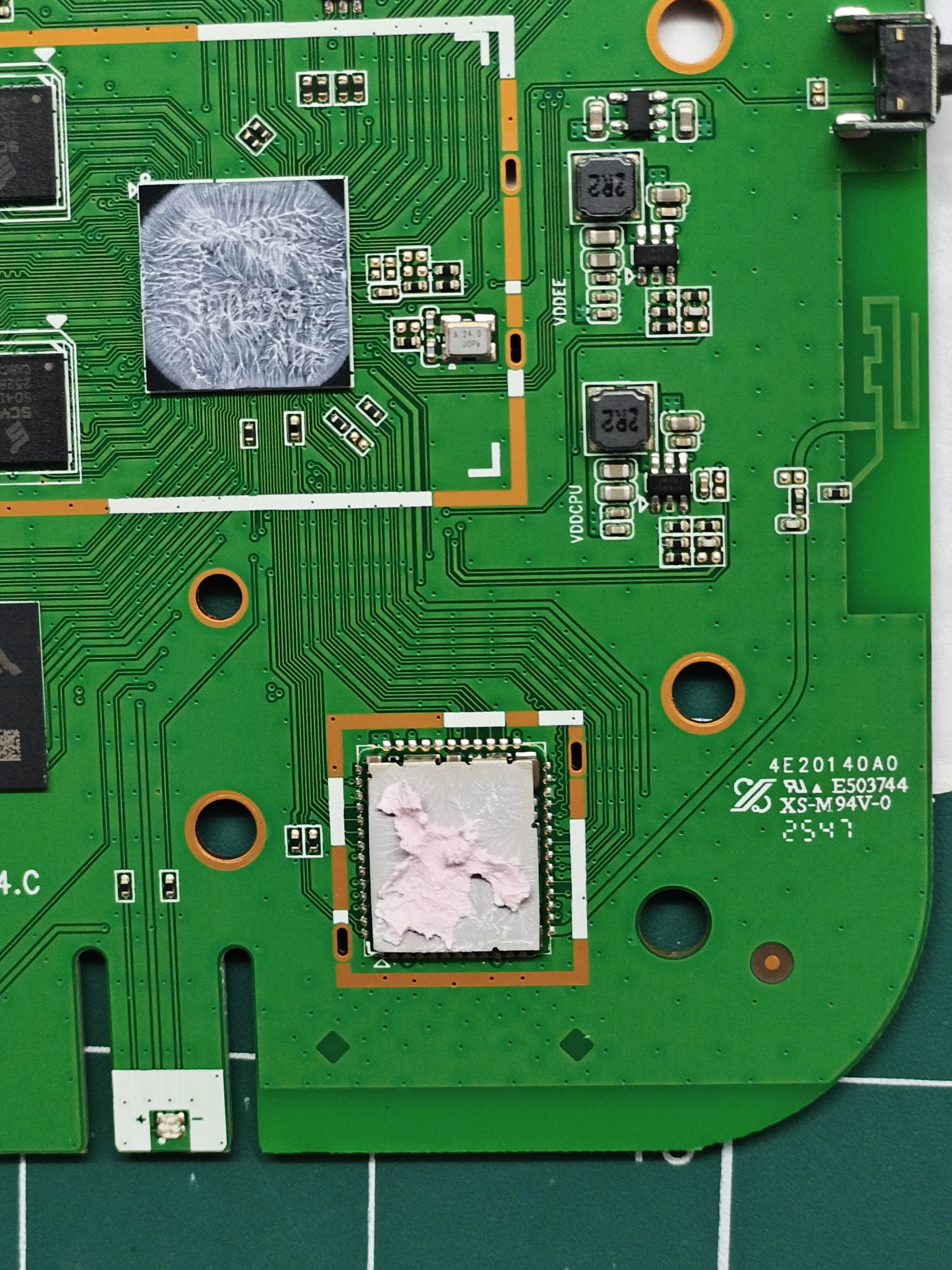

Jio AirFiber Set-Top Box Network Interfaces and Power delivery logic

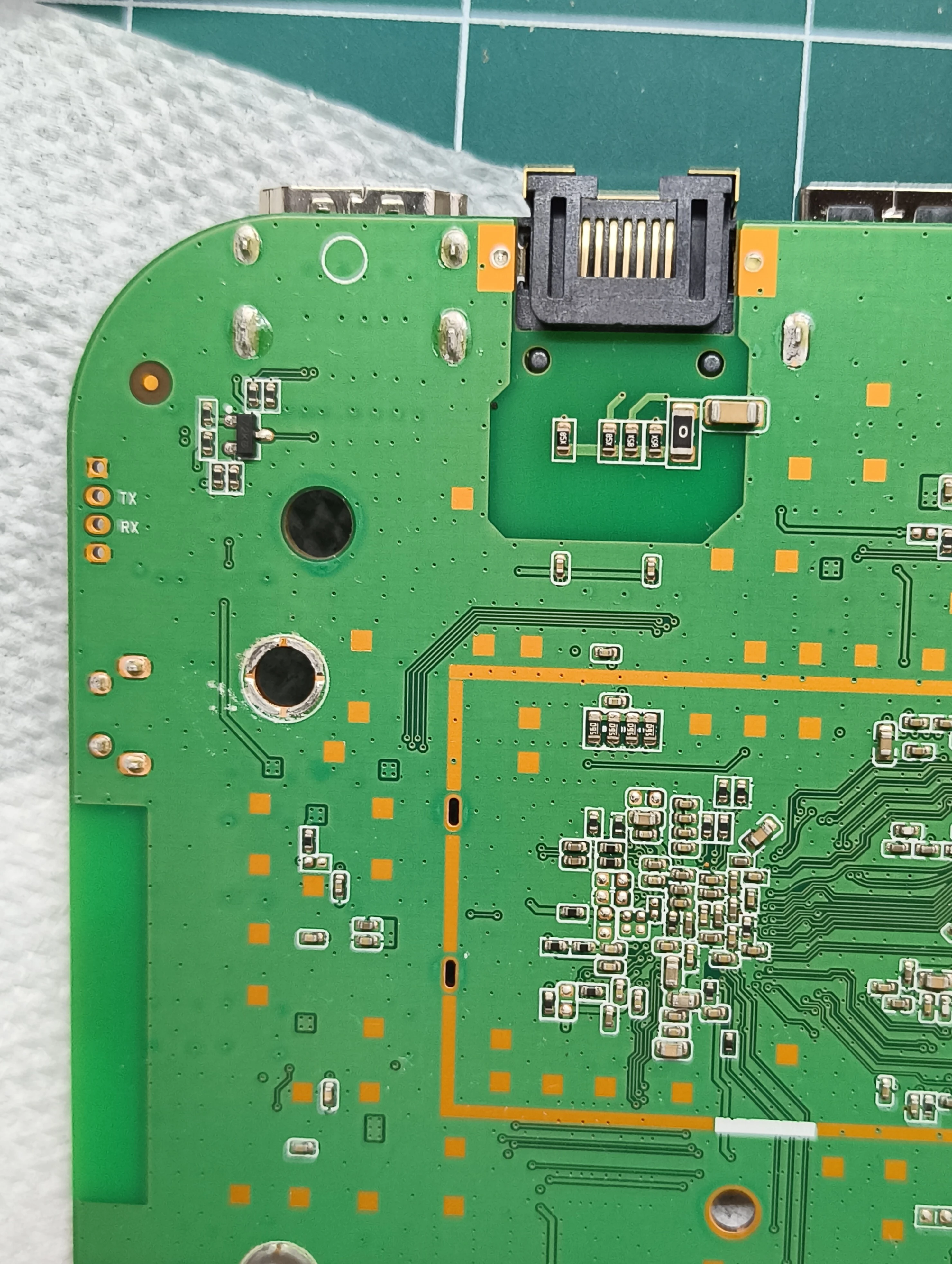

Thermal Management & Shielding Footprints on Jio AirFiber STB JMSC200A2_J

Peripheral Ports USB & HDMI Traces on Jio AirFiber STB Board

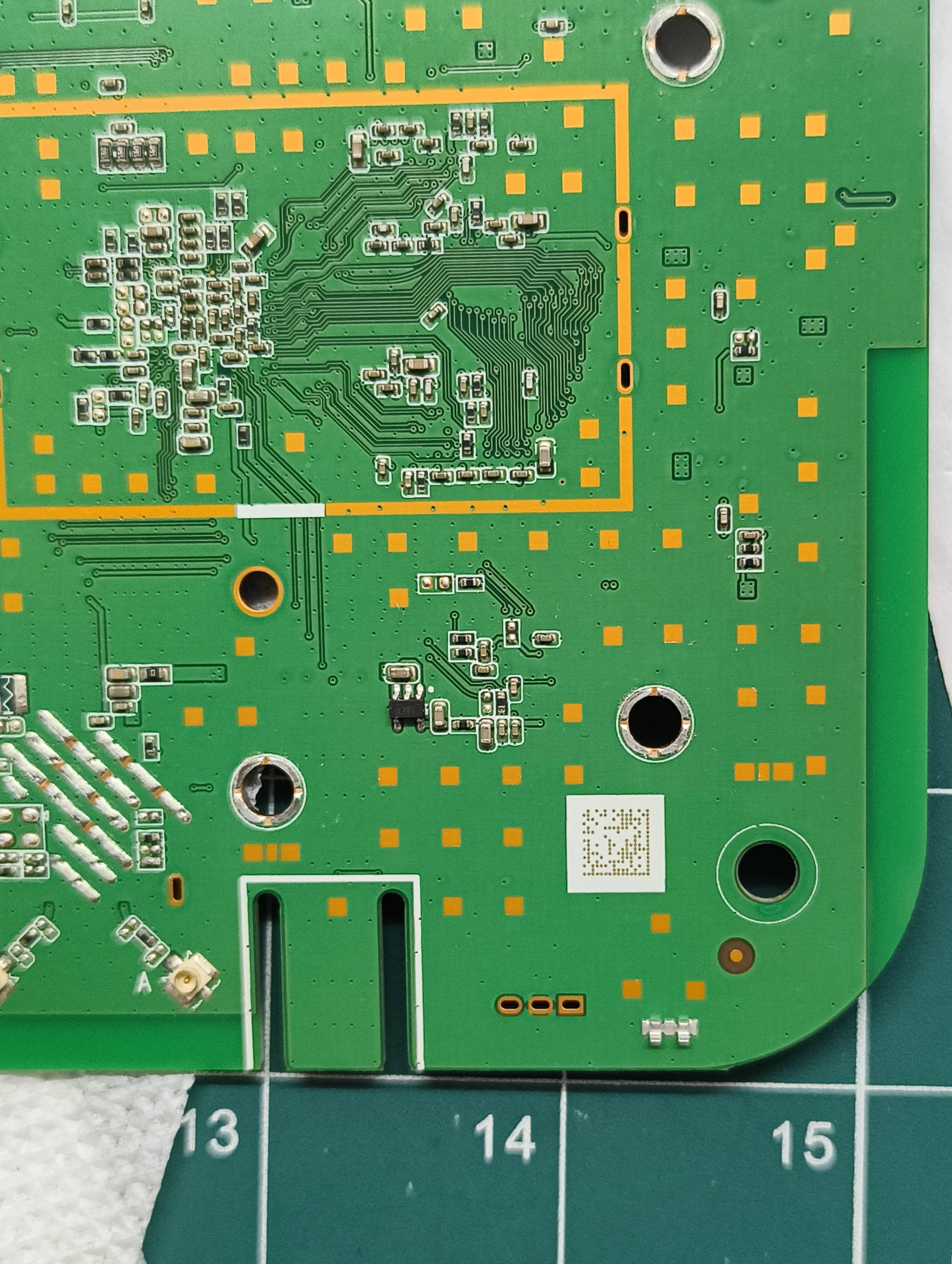

Antenna Layout and WiFi Connectivity Modules inside Jio AirFiber Set-Top Box

Jio AirFiber STB Motherboard Underside High Resolution Scan

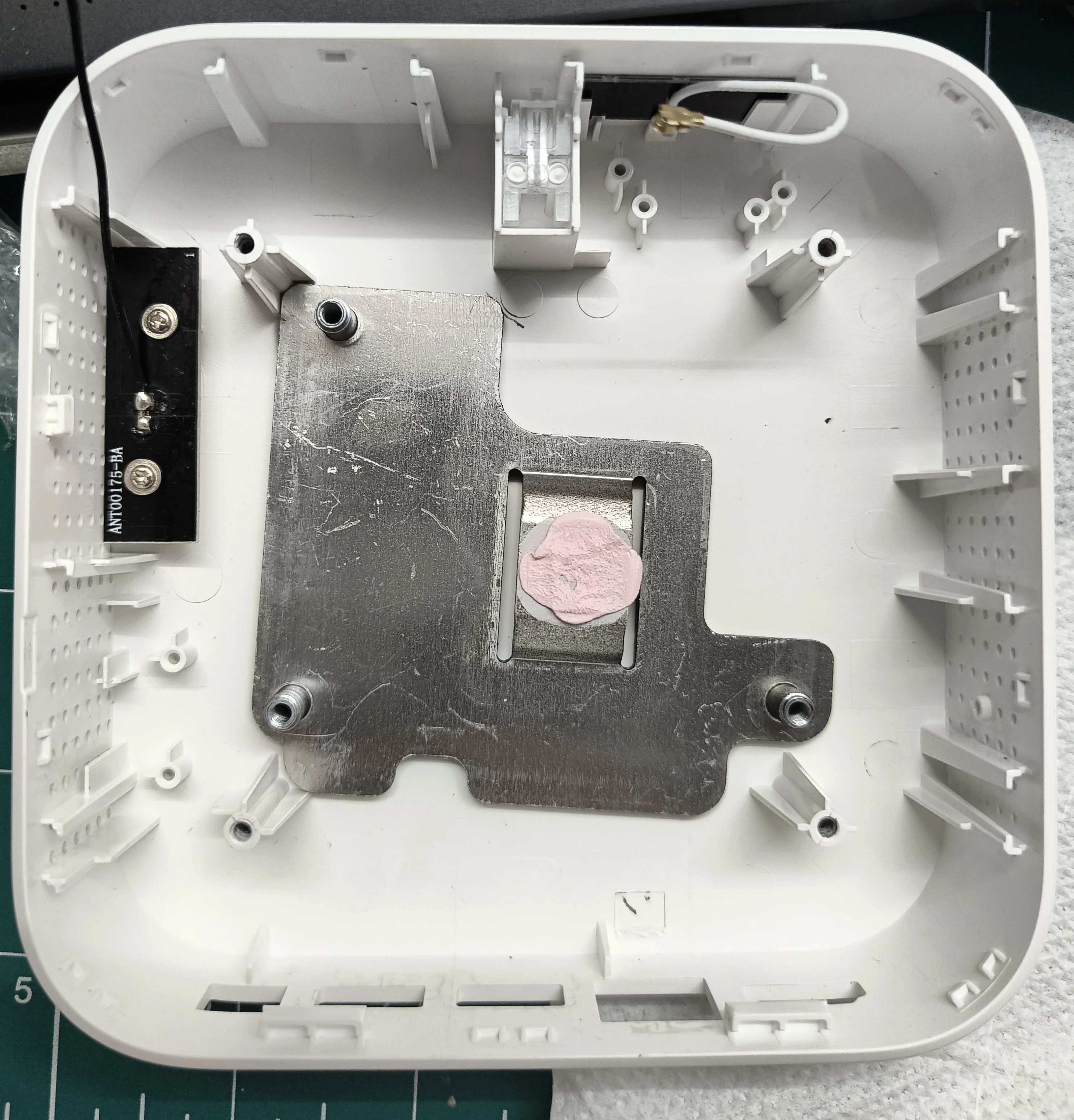

Close-up of Capacitors and Voltage Regulators - Jio STB IPSTB JMSC200A2_J

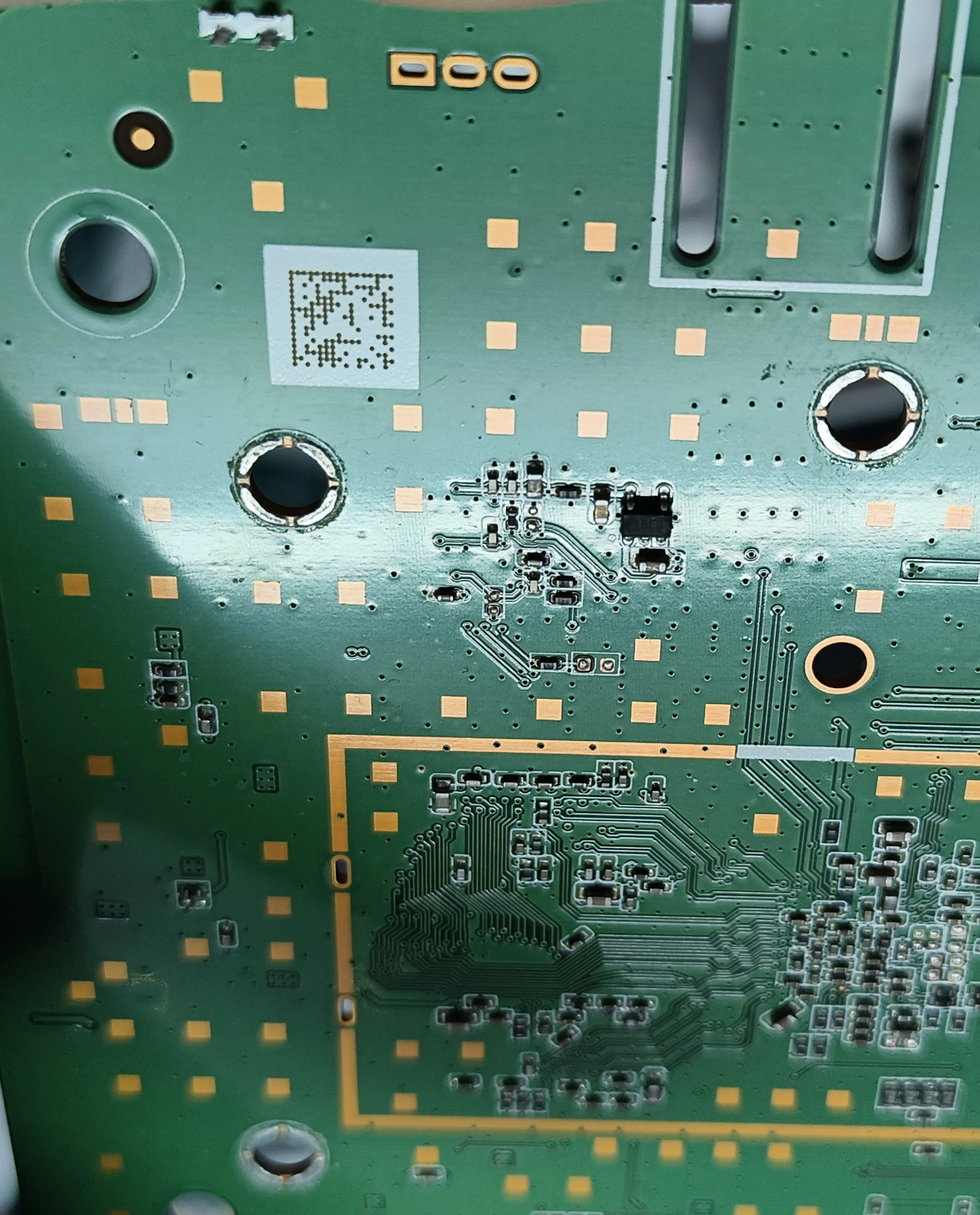

Micro-soldered surface mount chips on Jio AirFiber STB Motherboard

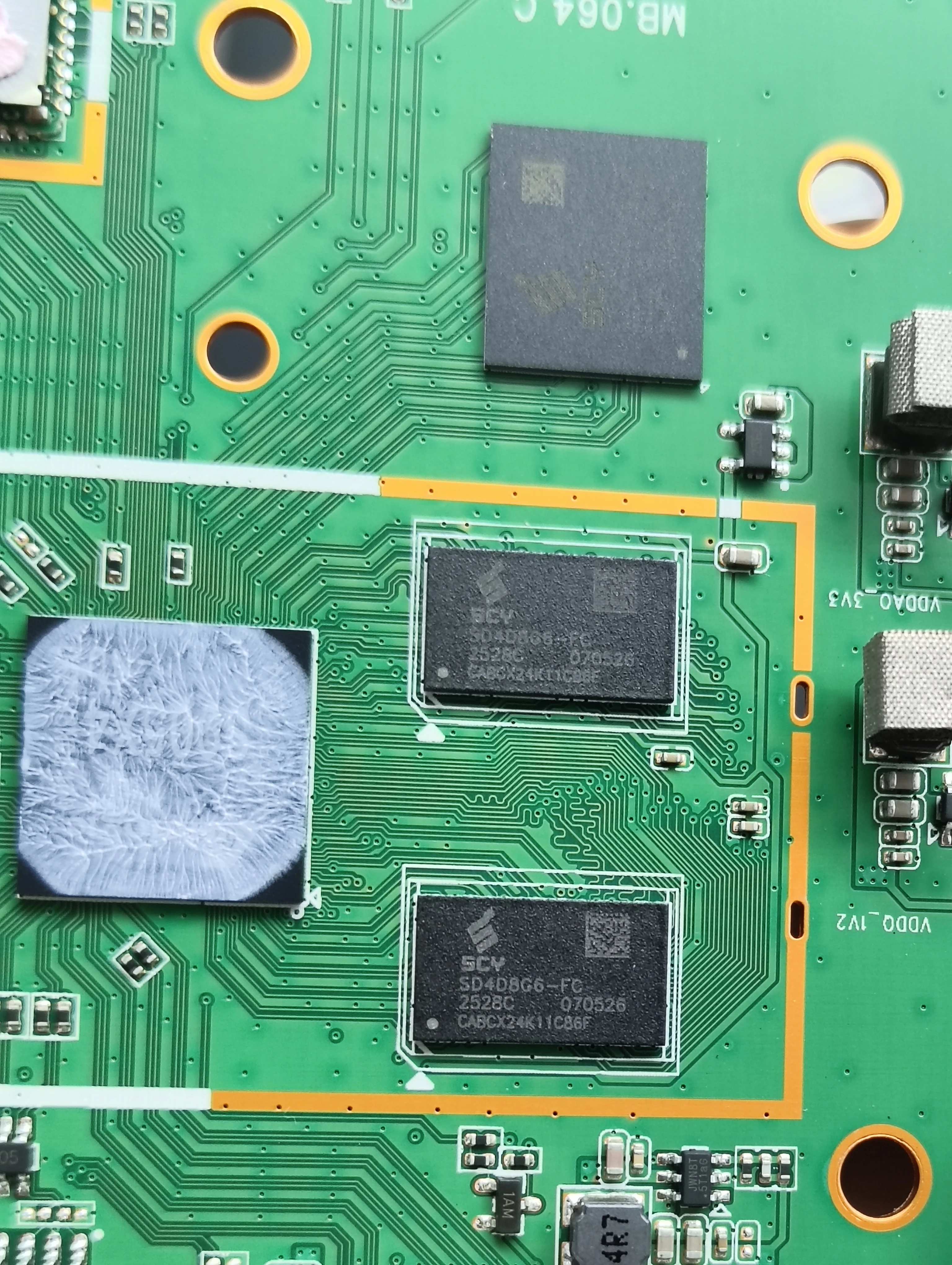

Jio Set-Top Box AirFiber Connection Ports & Casing Alignment

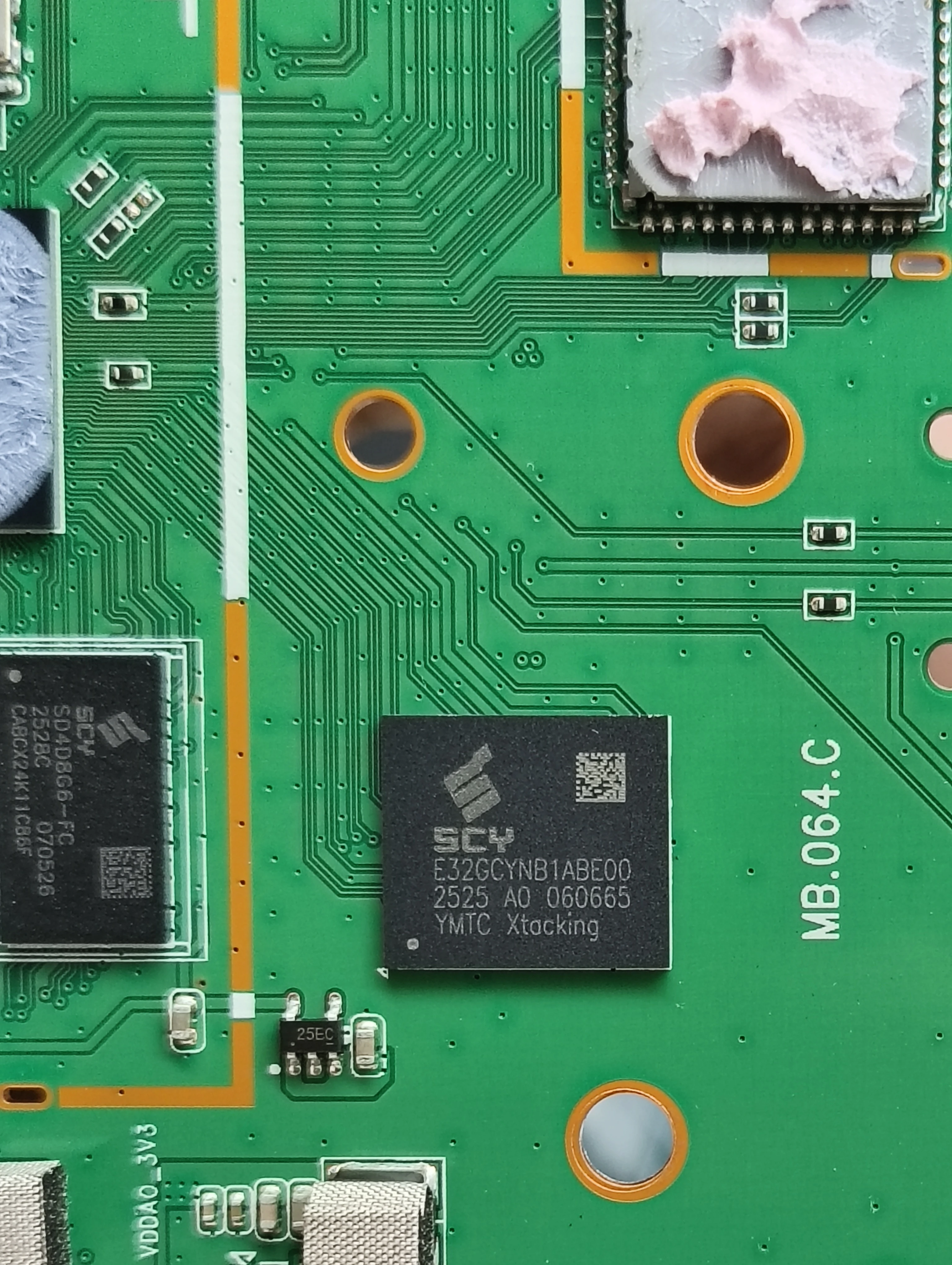

Detailed IO Shielding on Jio AirFiber IPSTB JMSC200A2_J

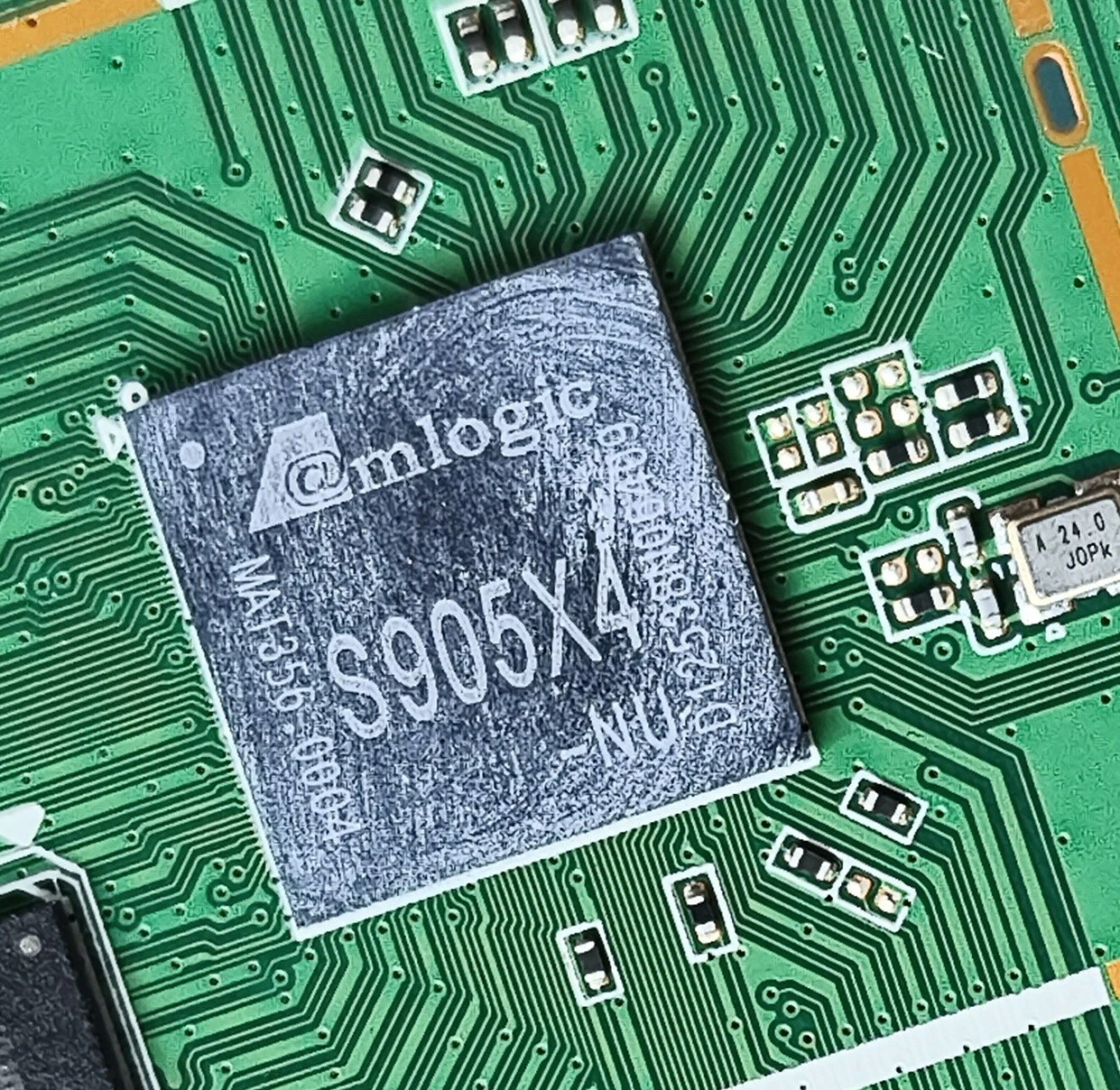

Macro lens scan of S905X4 Sub-components inside Jio STB

Ethernet and Digital Audio IO trace lines - Jio AirFiber Route

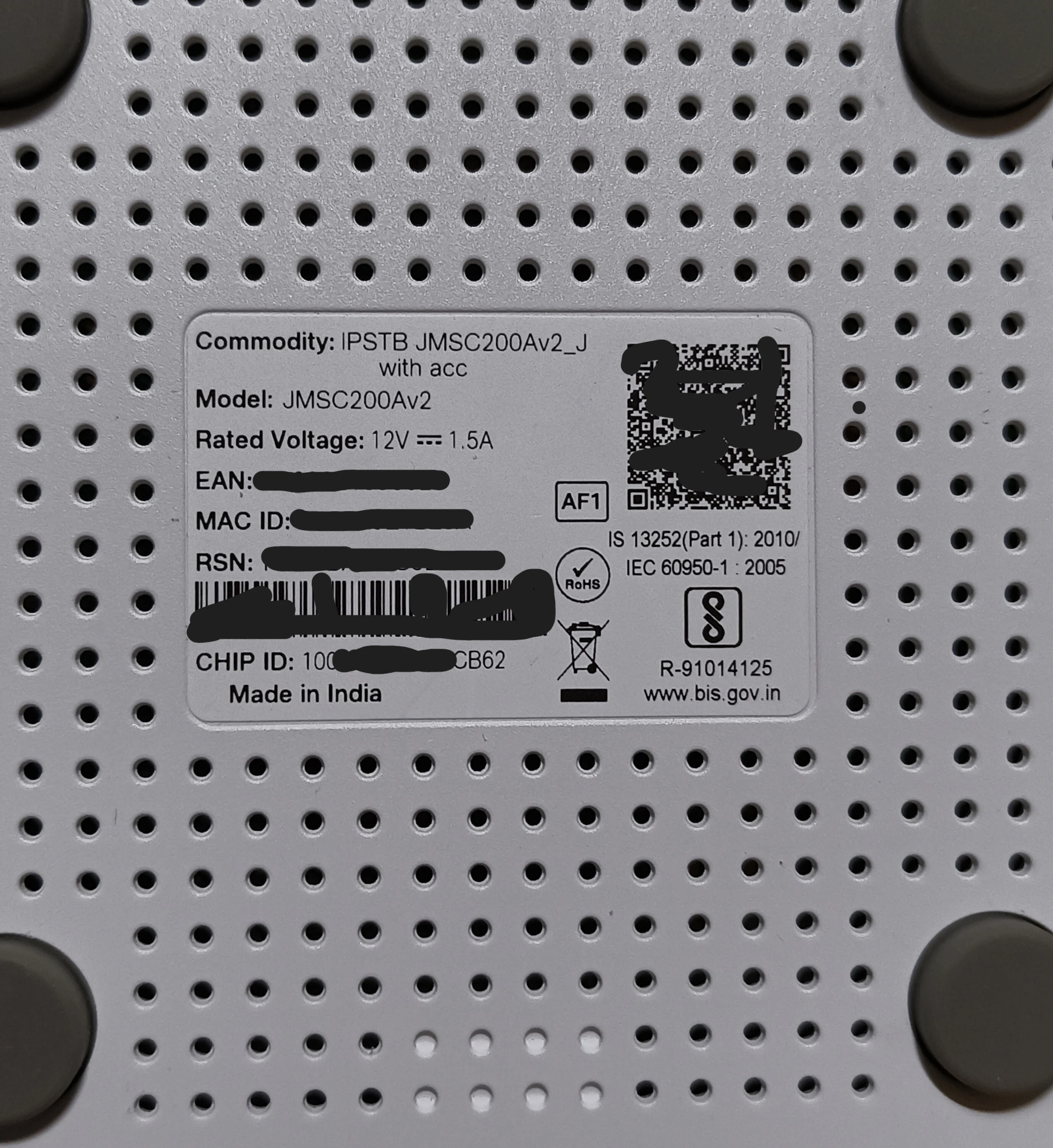

Final Hardware Overview - Completed Jio AirFiber STB JMSC200A2_J Teardown

Community, Firmware & Modding

The JFC-Group Github

For enthusiasts looking to break boundaries and maximize the capability of their Jio AirFiber (AF) and JioFiber (JF) devices, the JFC-Group on GitHub is heavily recommended.

Their open-source community repository hosts custom firmware scripts, SSH/Dropbear servers adapted to MIPSEL routers, Cloudflare tunnel configurations, modded PJSIP/microSIP implementations, and specialized Go-based tools configured to unlock JioTV features seamlessly.

Removing Ads (AdGuard DNS)

You can mitigate system-wide advertisements by changing the default DNS to AdGuard. For a step-by-step tutorial on router-level DNS intervention, watch the last 5 minutes of this guide here.

Archived Custom ROM & Sideloading Resources

⚠️ DISCLAIMER: The methods listed below are mostly archived. Following OTA firmware updates post-Nov 2022, direct sideloading access via servers was aggressively patched. Proceed entirely at your own risk. Custom ROM environments may result in permanent bricking.
